InstantVap Lite - Information, Maintenance and Servicing

Clean the unit at least after every 20 treatments.

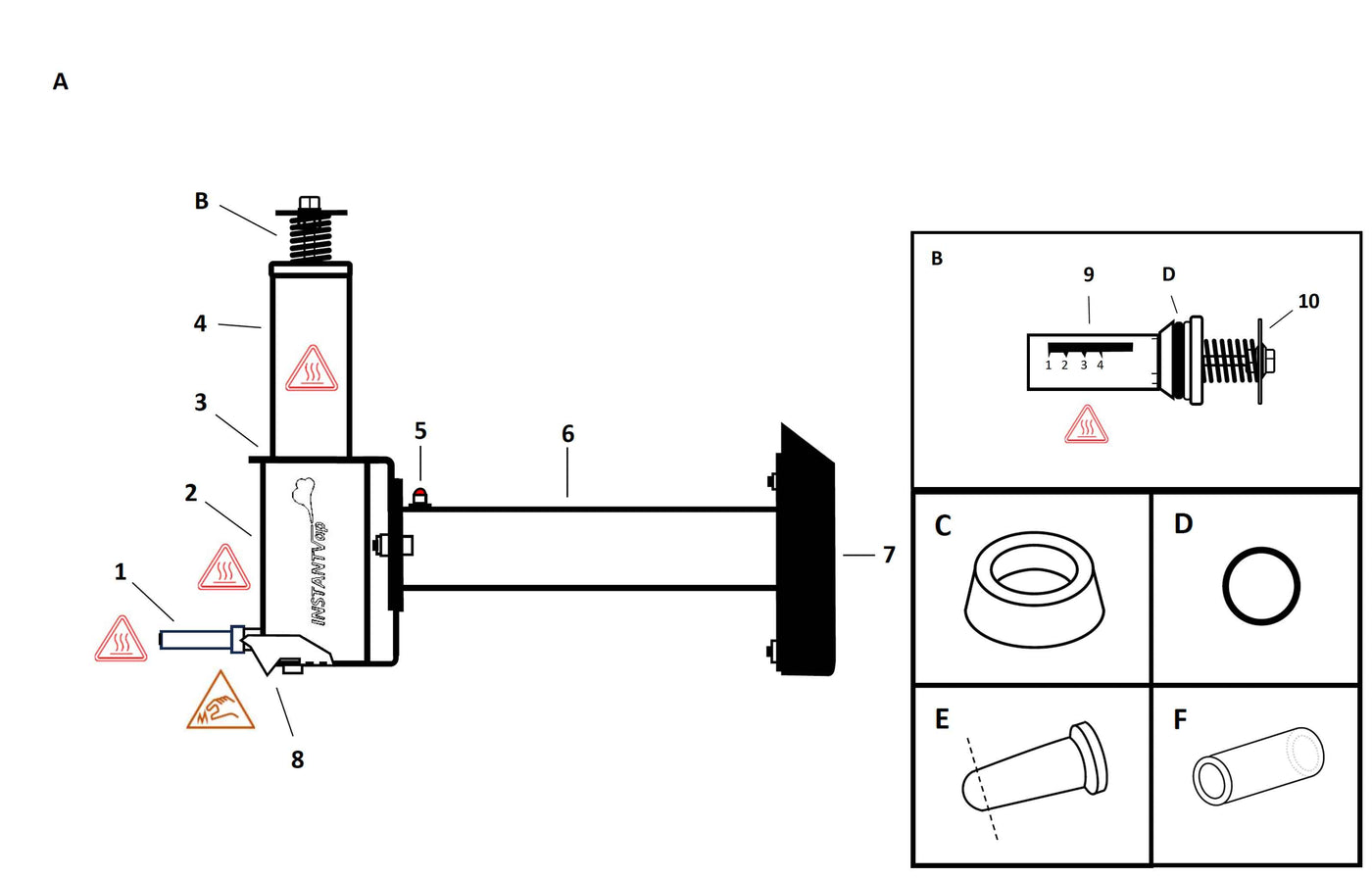

Put on your safety gear, including your gloves, mask and safety glasses. Make sure the unit is not clogged. Heat up the unit in case it is cooled. Remove battery. Remove dispenser (B) from unit. Fill the silicone cleaning cap (C) with water. Turn the heated unit upside down and push the cap on the dispenser’s tube (4). Push the cleaning cap very hard, point the outlet tube (1) away from you and turn the unit back. Repeat it until the unit does not generate any more steam. WARNING! High pressure and hot steam!

Rinse the cooled unit by adding a full cap of water through the dispenser’s tube (4), shaking it and draining it through the dispenser’s tube (4). Repeat until the drained water is clear. Heat the unit to dry up any water remaining in the unit. Let it cool.

Clean the outside of the unit by wiping it with a damp cloth. The dispenser is to be washed in water. Add a drop of mineral oil or grease to the O-ring (D) to increase lifespan and ease of use. Store the unit in dry and clean state.

Remove dispenser (B) from device. Set your dispenser at the desired dosage. The dispenser can be adjusted by turning the handle (10) while checking the indicator (9). The numbers on the indicator correspond to the grams of oxalic acid the dispenser holds. It can be set from 1 to 4 grams. Place dispenser back in device.

Connect your battery to the battery socket (7). The LED light (5) starts blinking slowly. It means the unit is heating up. Wait until the LED turns to steady-on. At this point the unit is heated and ready.

Place the vaporiser in place for treatment. Remove the dispenser from device and press dispenser into oxalic acid to collect dose, then place it into device and depress. The LED light turns to blinking rapidly. Allow the treatment to be completed. The unit indicates the completion ot the treatment by the LED light turning to blinking slowly or steady-on. At this point you can place the unit ready for the next treatment and re-load the dispenser. As soon as the LED turns to steady-on, you can place the dispenser in and apply the next dose. Keep repeating until all your treatments are finished or your battery is discharged.

The unit indicates the discharged battery by ’double blink – pause’. The unit does not heat while a discharged battery is connected.

The LED light patterns are the following:

After finishing treatments, remove battery from socket and charge battery. Clean the unit and allow it to cool down.

The unit does not light up (5) after connecting the battery:
- check your battery charge level.

The light (5) turns on, but the unit does not heat:
- if the light double blinks and pauses, your battery is discharged.
-if the light is steady-on, but the unit is not heating, the unit is faulty.

The start of the treatment is long delayed after applying oxalic acid:
- the heating chamber (2) may be covered with charred residues. Clean the heating chamber thoroughly.

The unit heats up very slowly:
- water residue may be in the heating chamber (2). Let it boil off.

The dispenser (B) pops out after dosing:
- the outlet tube (1) is clogged.

The outlet tube (1) is clogged:
- warm the outlet tube with a blowtorch or drill into the outlet tube with a max. 3mm drill.

The outlet tube (1) keeps clogging:
- the outlet tube is in contact with wet materials that keeps cooling it down.

The dispenser (B) fits very tight:
- - add a drop of mineral oil or grease to the O-ring (D). immerse dispenser in water before loading.

The dispenser (B) fits too loosely:
- change O-ring (D).

The dispenser’s handle (10) is stuck:
- immerse dispenser (B) in water and gently twist the handle to loosen it.

Oxalic acid does not stick in the dispenser (B):
- add one teaspoon of water to your container of oxalic acid to increase its moisture level.
- or immerse dispenser in water before loading.
